Drive Med Aire DuoWave 5" Overlay Air Mattress

The Drive Medical alternating pressure system Med Aire DuoWave is a system which
is specially developed for the prophylaxis and treatment of decubitus, up to and including
grade 3 decubitus according to EPUAP.

CLEANING, DISINFECTION AND CARE

Unit

• Before cleaning, disconnect the unit from the power supply. During cleaning, ensure that no liquids/ cleaning solutions come into contact with the plug.
• The unit should not be saturated or soaked.
• The unit may be cleaned by hand. To do this, use a moist (not wet) cloth and a mild household cleaning and disinfectant solution.
• Do not use any solutions which contain phenol or abrasive cleaners. This can corrode the surface of the unit.
• Allow the unit to dry thoroughly.
• Perform a function test after the device is thoroughly dry.

Mattress overlay system

The mattress overlay system should not be saturated or soaked*, however it can be cleaned by hand. To do this, use a moist (not wet) cloth and a mild standard cleaning and disinfectant solution.
* There is a risk of liquid getting into the cell chambers and hoses.

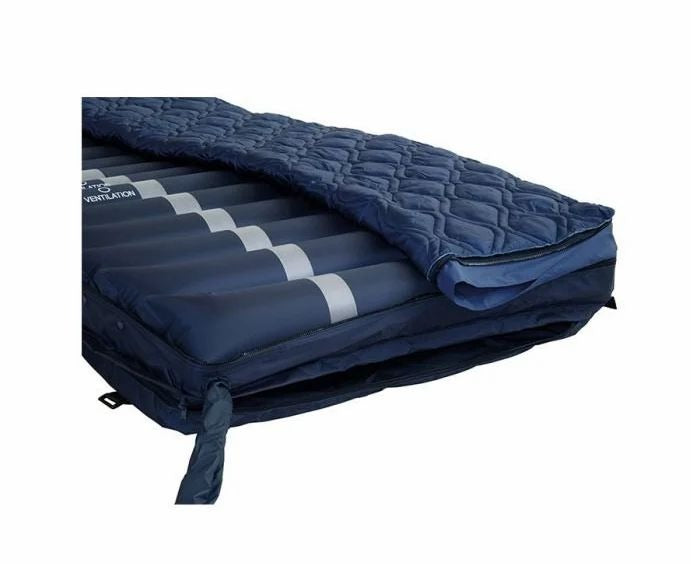

Cover

• The cover can be cleaned by hand. To do this, use a moist (not wet) cloth and a mild cleaning solution.
• You can detach the cover using the zipper and wash it at a max. temperature of 60° using a household detergent.
Note: If the Med Aire DuoWave is machine-washed and disinfected, a validated and automated method according to the Robert Koch Institute (RKI) and/ or the Association for Applied Hygiene (VAH) is necessary.

STATIC FUNCTION

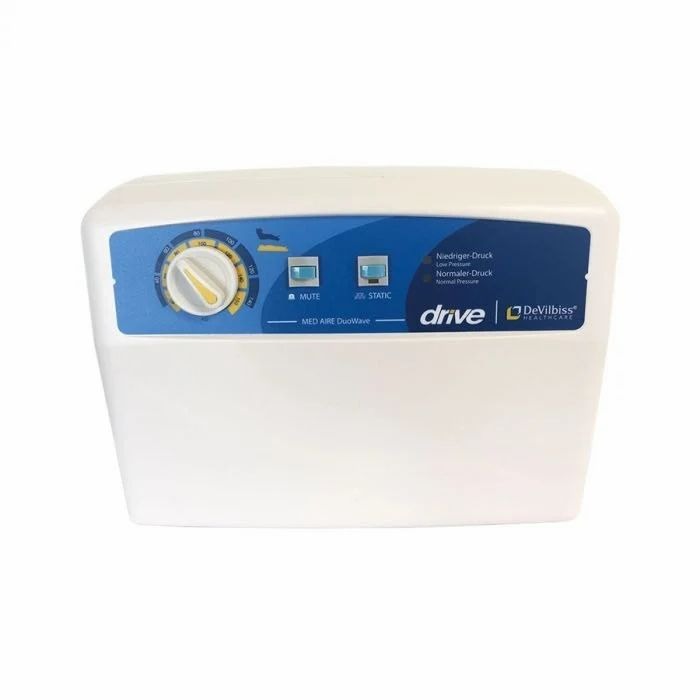

The Med Aire DuoWave has a static function as a standard feature. This is switched on using the "Static" button. The LED indicates that the static function is enabled. The air chambers all maintain the same pressure and ensure adjustable pressure-relief positioning. In static pressure-relief mode, the deepest point on the patient (buttock/hip area) should sink into the system to approximately halfway down the upper cell system (approx. 3-4 cm).

Note: Perform a hand check to verify; see hand check section.

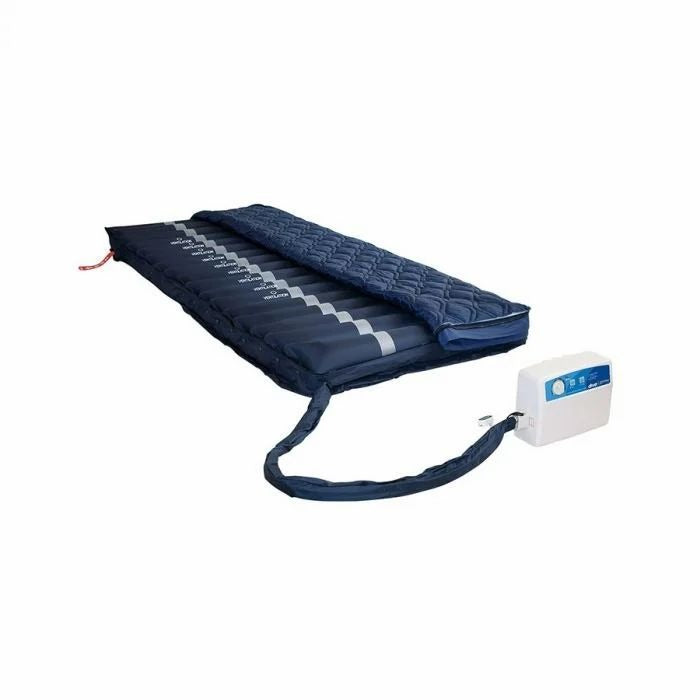

SETTING UP THE SYSTEM

The Med Aire DuoWave is placed on the existing mattress. Alternatively a 4- or 5-cm high foam pad can also be placed in the pouch provided.
• Take the Med Aire DuoWave alternating pressure system out of the packaging.
• Check the contents for completeness and any visible damage.
• Place the alternating pressure system on the mattress in the standard or hospital bed. The foot end is marked with 2 feet.
• Secure the mattress replacement system using the available straps to the movable parts of the slatted frame to avoid impairing the functionality of the system and the adjustable slatted frame.
• Place the unit using the hooks provided at the foot end, on the floor, or on an even surface.Place the unit using the hooks provided at the foot end, on the floor, or on an even surface

Important! The connection hose must audibly click into place in order to prevent an unintentional separation between the unit and the mattress! Kinking or twisting the connection hose must be avoided.

AIR FLOW

The Med Aire DuoWave has nine air ow cells. This group of air chambers is microperforated at the edge and in this way, it ensures that the Med Aire DuoWave is actively supplied with air.

CPR (Cardiopulmonary Resuscitation)

Before resuscitation can/may be performed on the system, the system must be fully deated. For rapid deflation, pull down on the red tab printed with "CPR" at the head end (see fig.). The tab is on Do not dry the mattress cover in the dryer.
the same side as the hose system. The valves open and air escapes from all of the cells. To supply the system with air once again, close the CPR valve again by pressing it firmly and securely fasten the tab marked "CPR" once again.
