Feeding

Flow rate range:

• 1 – 100 mL/h (1 mL/h increments)
• 100 – 600 mL/h (5 mL/h increments)

Flow rate accuracy:

• ± 5 % at 50 mL/h

Feeding mode:

• Continuous

Priming:

• Automatic, semi-automatic and manual priming are available

Counter:

• Cumulative feeding volume counter from 0.001 L to 99.999 L

Data event log:

• Feeding history: 250 events
• Alarm history: 250 events

Night mode:

• The night mode decreases the brightness of the screen and the power LED

Keypad lock:

• Disabling keypad to prevent unintentional key press

Setting lock:

• Possibility to prevent patient from changing settings, access code protected

Other settings:

• Target volume activation/deactivation, sound level adjustment, key beep activation/deactivation, contrast & brightness settings, time between alarm sounds setting, time between target volume almost reached message and target volume reached setting

Intented use:

• For enteral feeding use only

Information / Alarms

Pump status:

• Administration in progress: Droplet animation
• Administration stopped: Stop symbol displayed
• All alarms represented by light indicators, pictograms and sounds

Information:

• Target volume almost reached, battery almost discharged, start reminder, technical information

Alarms:

• Target volume reached, door opened, wrong set installation, downstream occlusion, upstream occlusion, empty bag / air in line, empty battery, technical error

Occlusion detection time:

• At 50 mL/h: < 6 min with medical water

Empty bag / air in line detection time:

• At 50 mL/h: < 5 min with medical water

Technical Specifications

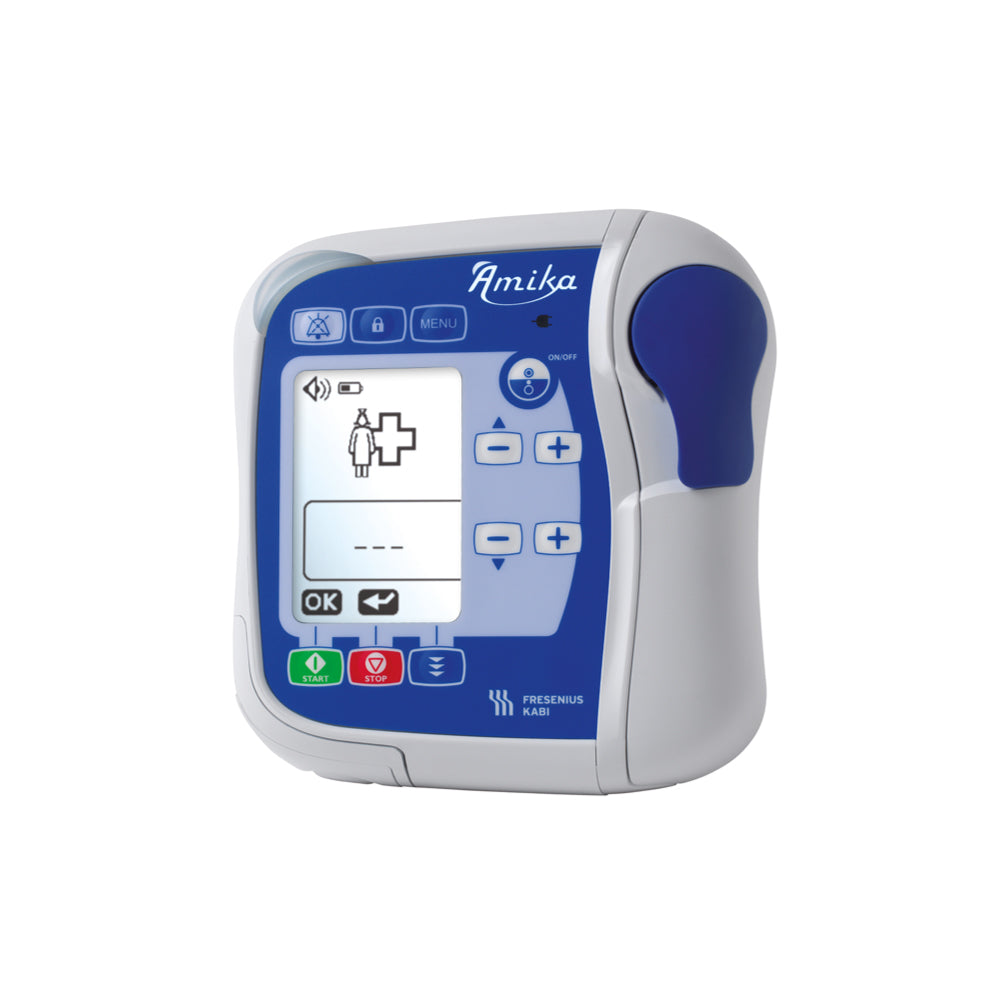

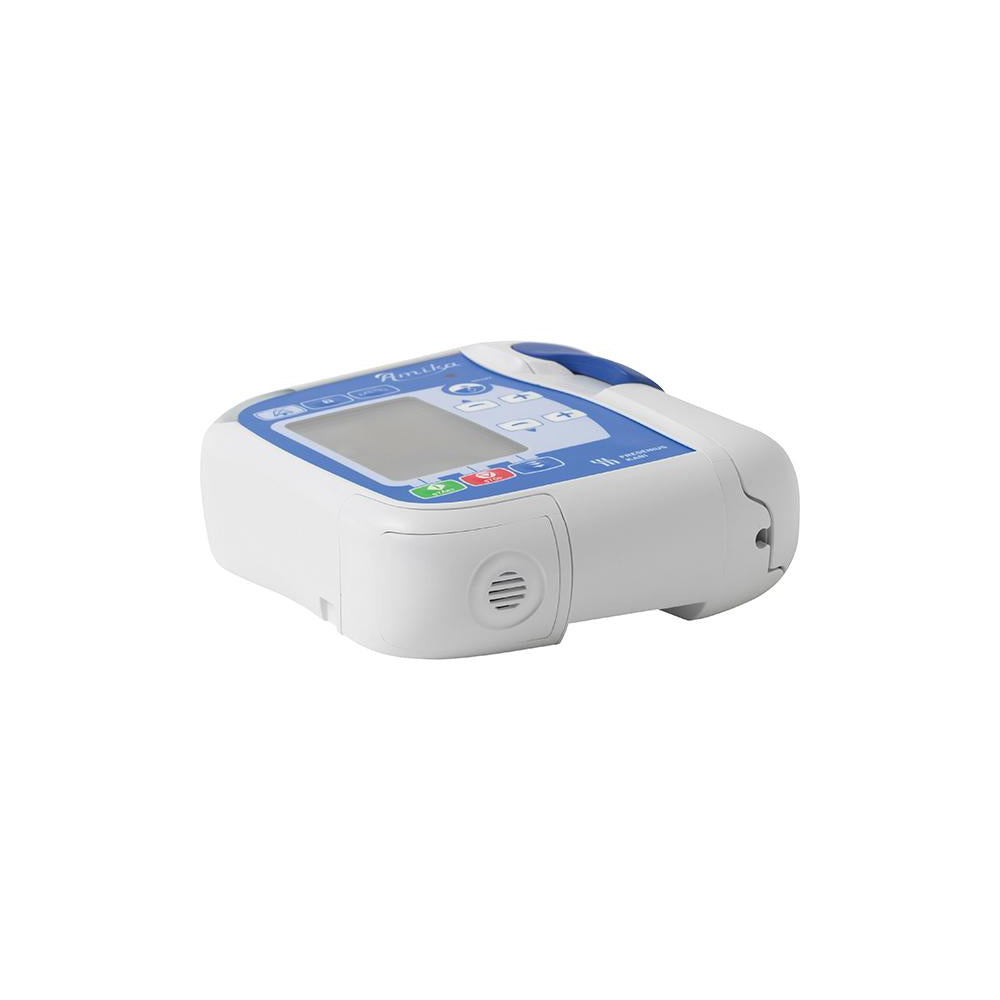

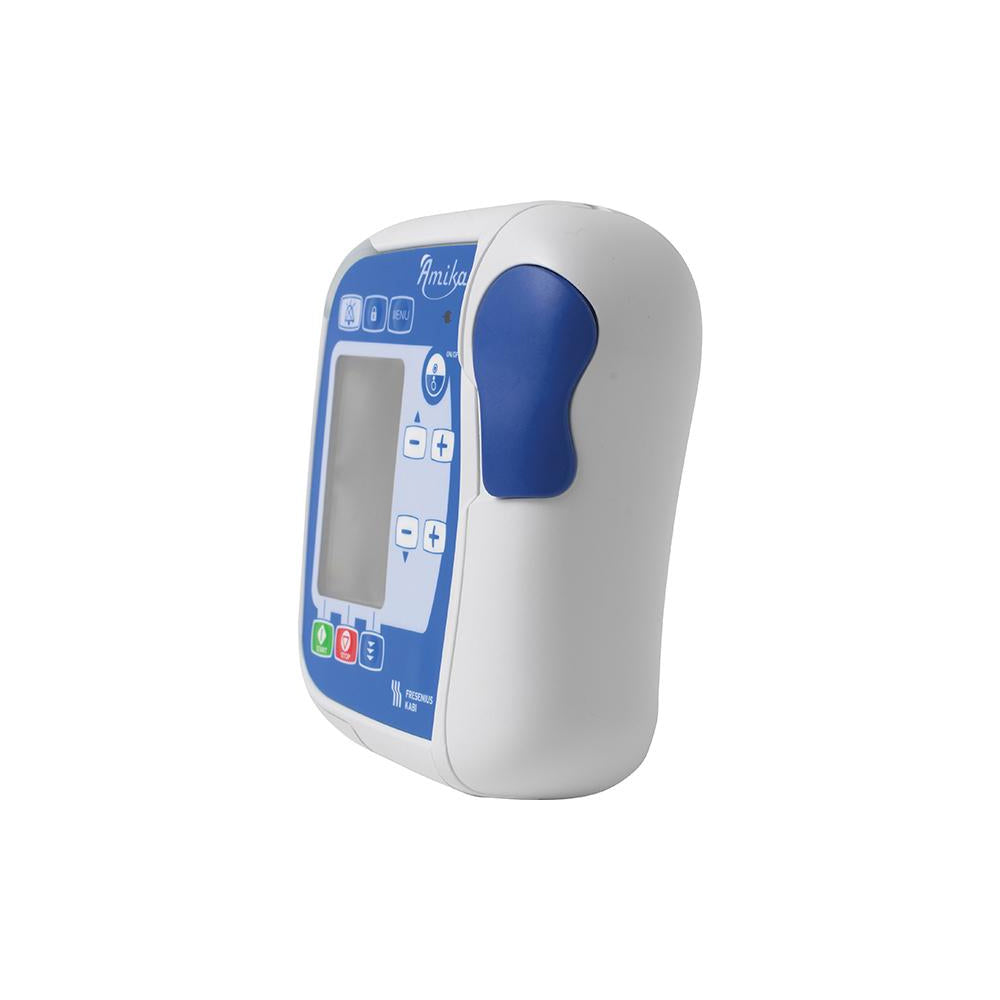

Pumping mechanism: Linear peristaltic pumping system

Display: Monochrome LCD 40 x 59 mm (160 x 240 pixels)

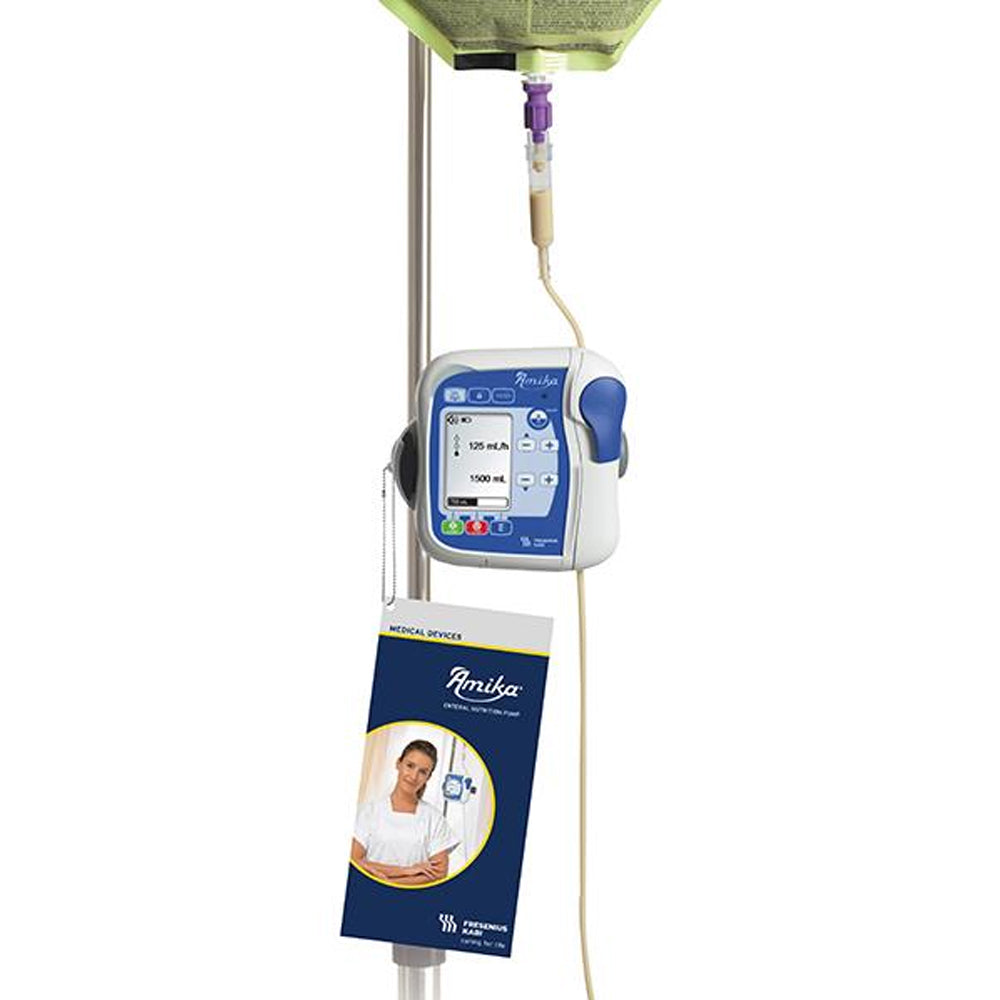

Clamp: Versatile clamp to fix on a rail (10 - 35 mm) or a pole (Ø 8 - 40 mm)
Dimensions (H/W/D) / Weight:

• Pump: 138 x 128 x 48 mm / 610 g
• Pump Holder: 185 x 110 x 85 mm / 350 g

Battery: NiMH (Nickel-Metal Hydride), battery life 24 h ± 5 % at 125 mL/h, battery level indication on the display

• Battery charging time: 6 h

Compliance standard:

• IEC 60 601-1, IEC 60 601-1-2 and IEC 60601-2-24
• CE 0123 marking in compliance with the EEC 93/42 European Medical Device Directive

Waterproofness:

• Pump: IP35
• Pump Holder: IP32
• AC Adaptor: IP41

Electrical compliance:

• Protection against leakage current: Defibrillation-proof type CF
• Protection against electric shocks: class II

Power supply: 100 – 240 VAC / 50 - 60 Hz
Power consumption: Maximum 7 W in standard operating conditions
Noise: Around 25.8 dBA at 1 m (background noise 18.3 dBA)
Housing material: ABS

Amika Administration Set

Free-flow protection: All sets are designed with the Amika clamp preventing the risk of free-flow when the door is opened and when the set is disengaged
Set length: Around 2.50 m, adjustable anti-free-flow Amika clamp positioning
Materials: All Amika lines administration sets are DEHP-free & latex-free
