Computerized Portable Stimulator The Following section gives a step by step account of how to use the computerized portable stimulator.
1) Connect the Two pin mains cable wire in the mains socket. Switch On the mains button. Make sure that the intensity Control is set to minimum before switching ON.

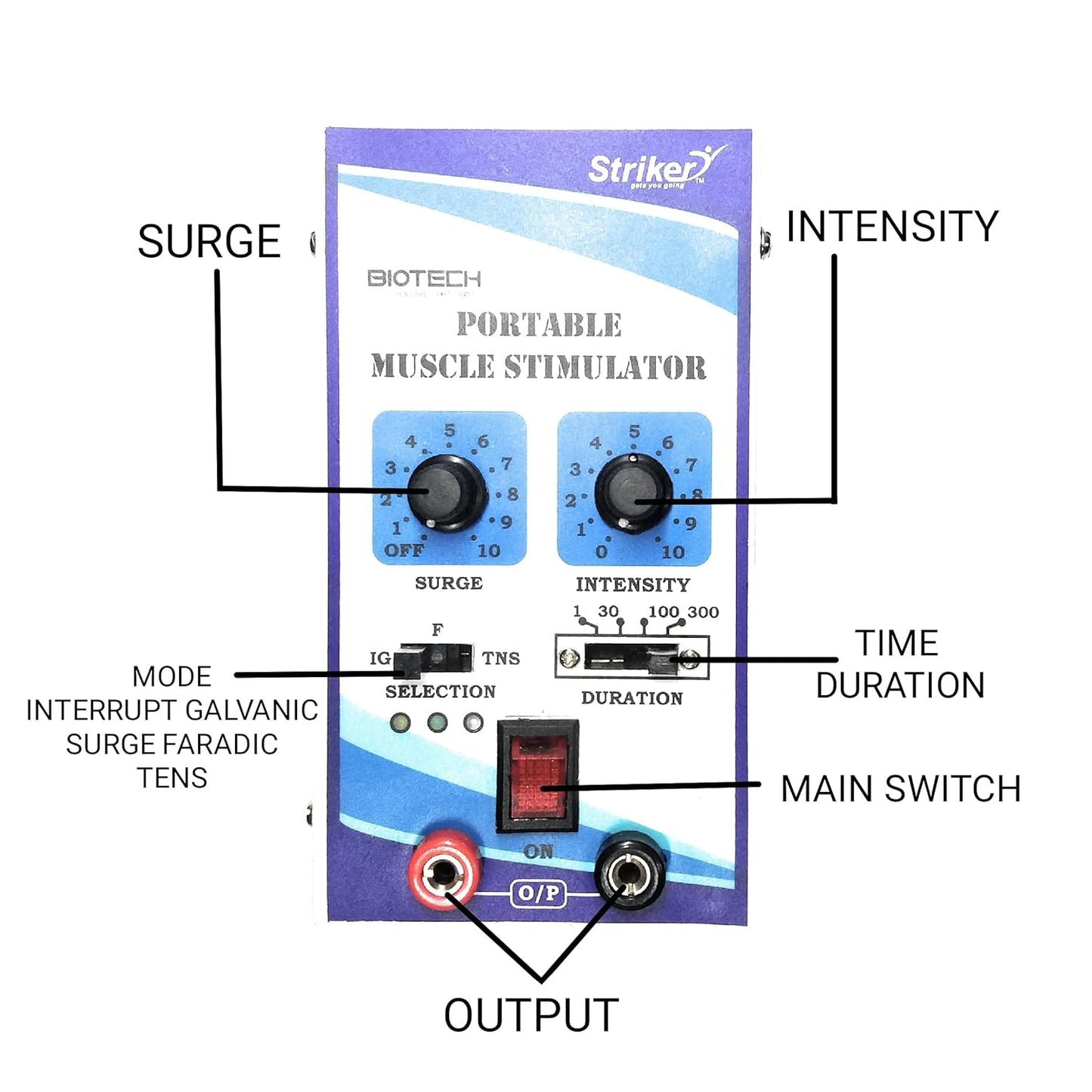

2) Select the mode as per your requirement, using mode switch present on the front panel. The available options are Interrupted Galvanic , Surge Faradic and TENS. a) Interrupted Galvanic: b) Surged Faradic c) TENS; Continuous ON with frequency Modulation, so in this mode frequency will keep on changing to avoid accommodation and to increase the endorphin secretion.
3) Select the Parameters Of various stimulation current as per user requirement. This is given for each individual current Type as follows:

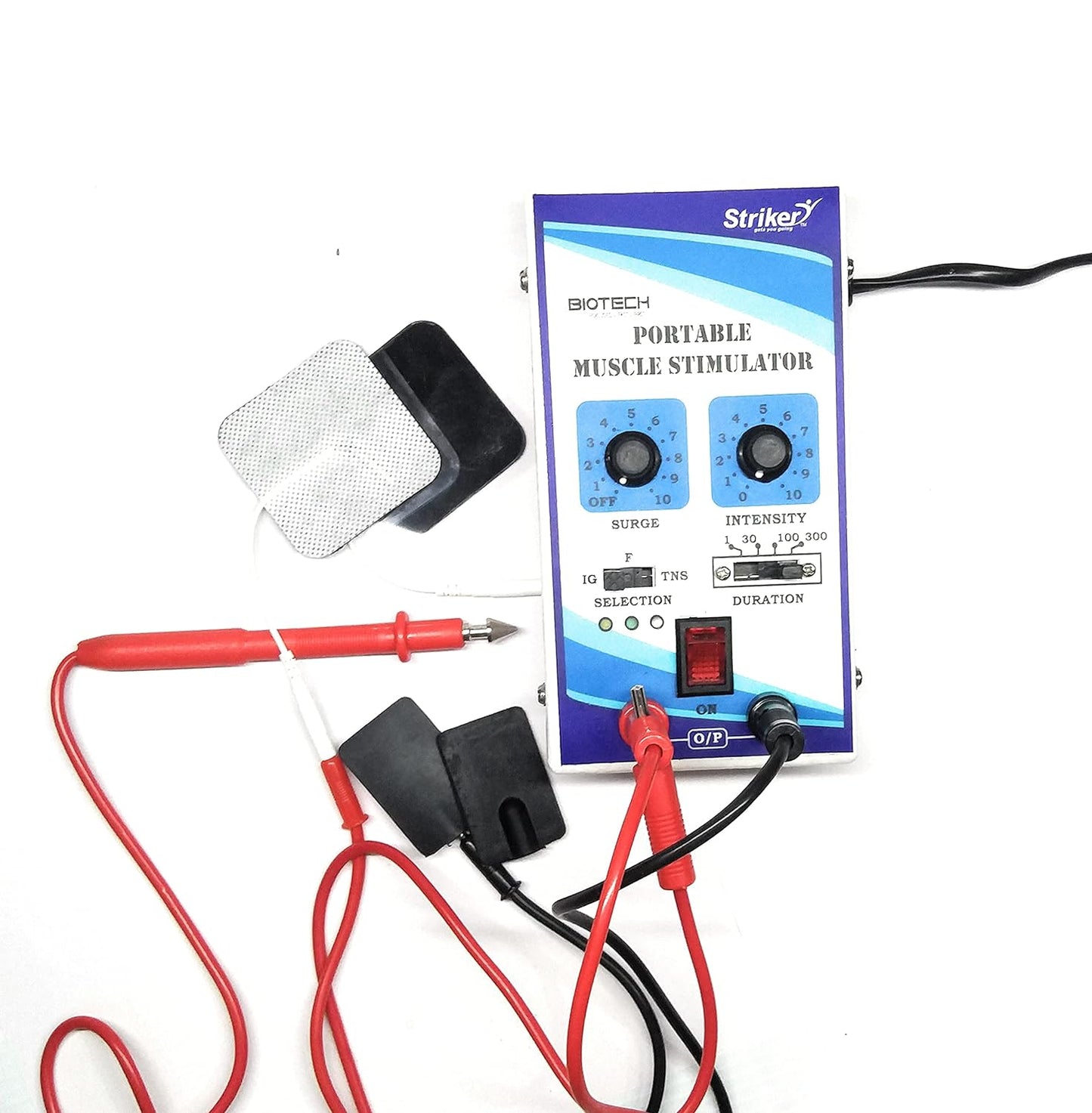

4) Prepare the treatment area on the patient body and attach the electrodes using electrode straps.
5) Insert the cable in the socket provided on the front panel.
6) Now begin the treatment by slowly increasing the intensity. Note for the user: If you desire to change the mode in between the treatment, you need to first decrease the intensity knob to zero and after that only you can switch to another mode.
