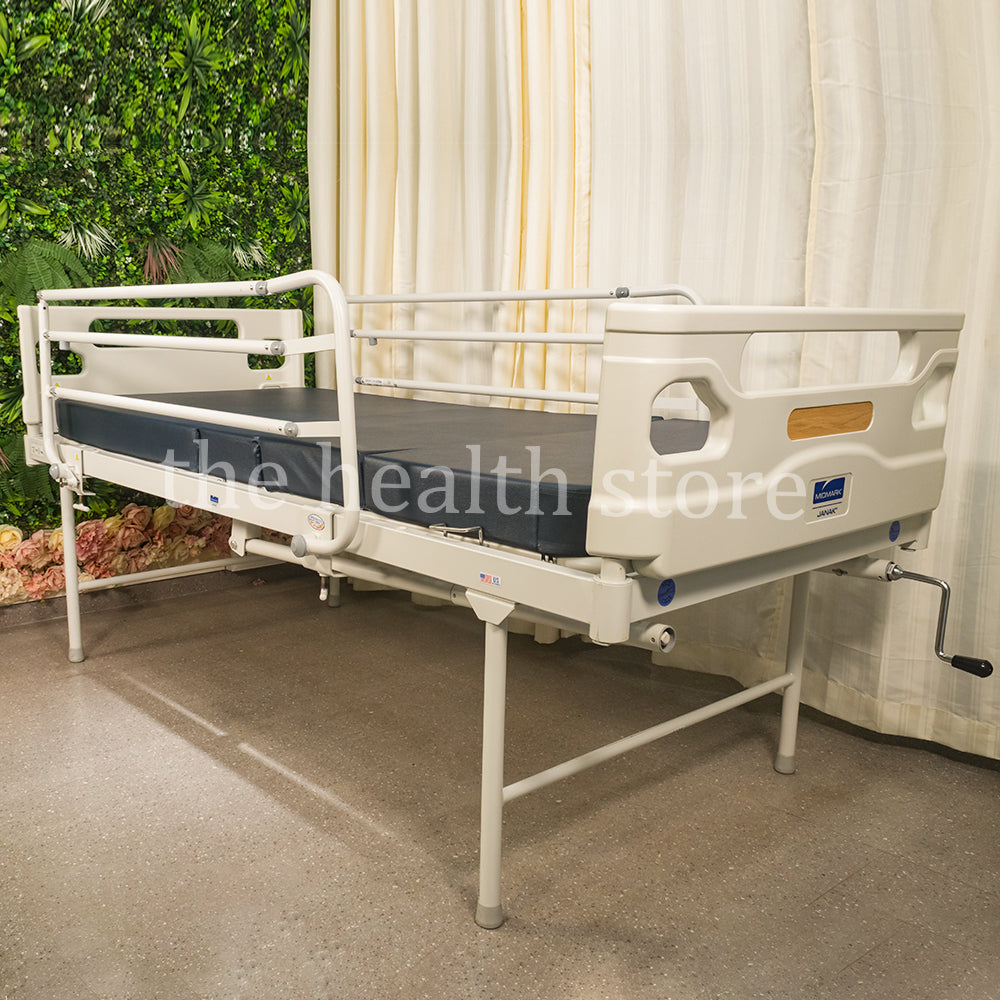

Midmark Jank BX4000 Fowler Bed

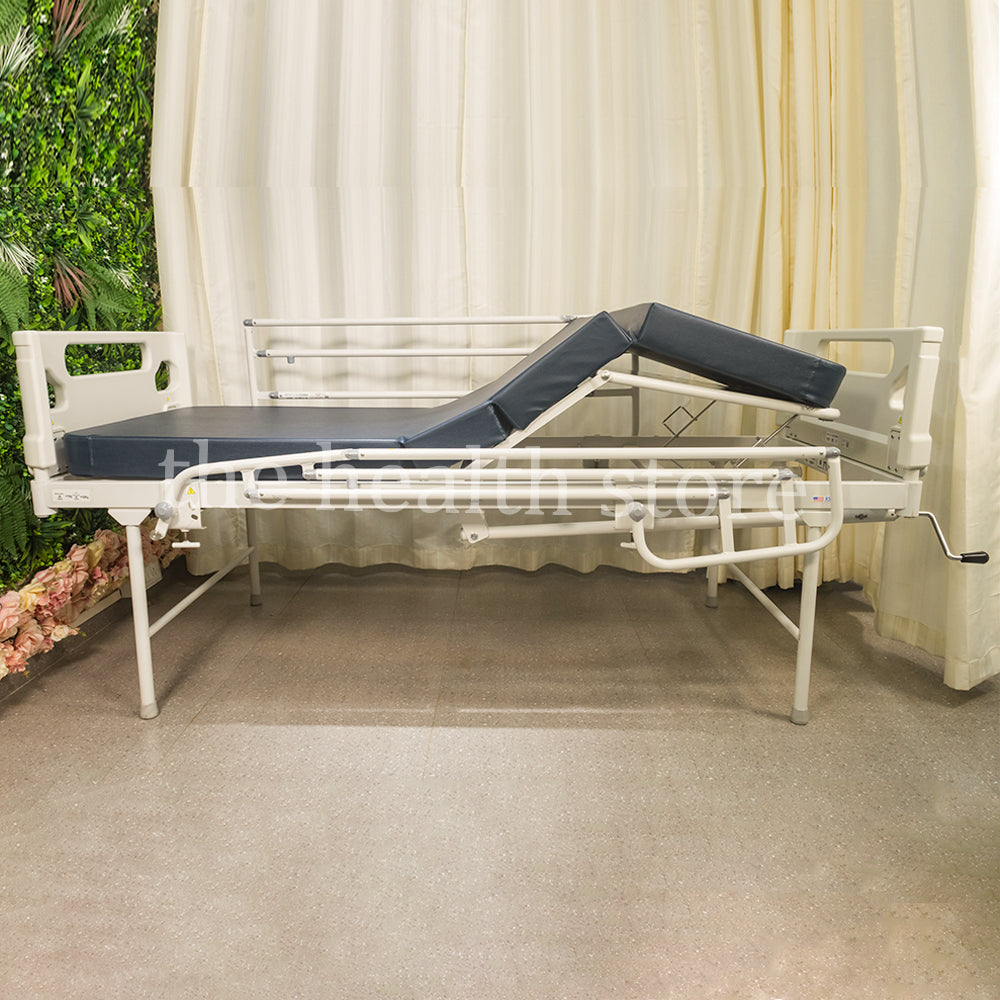

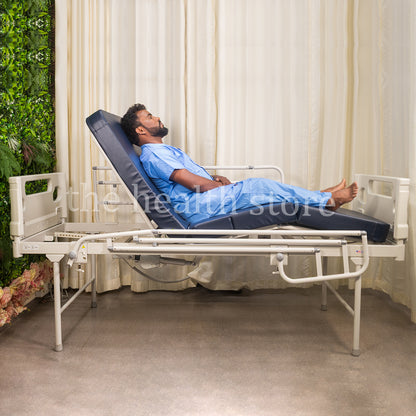

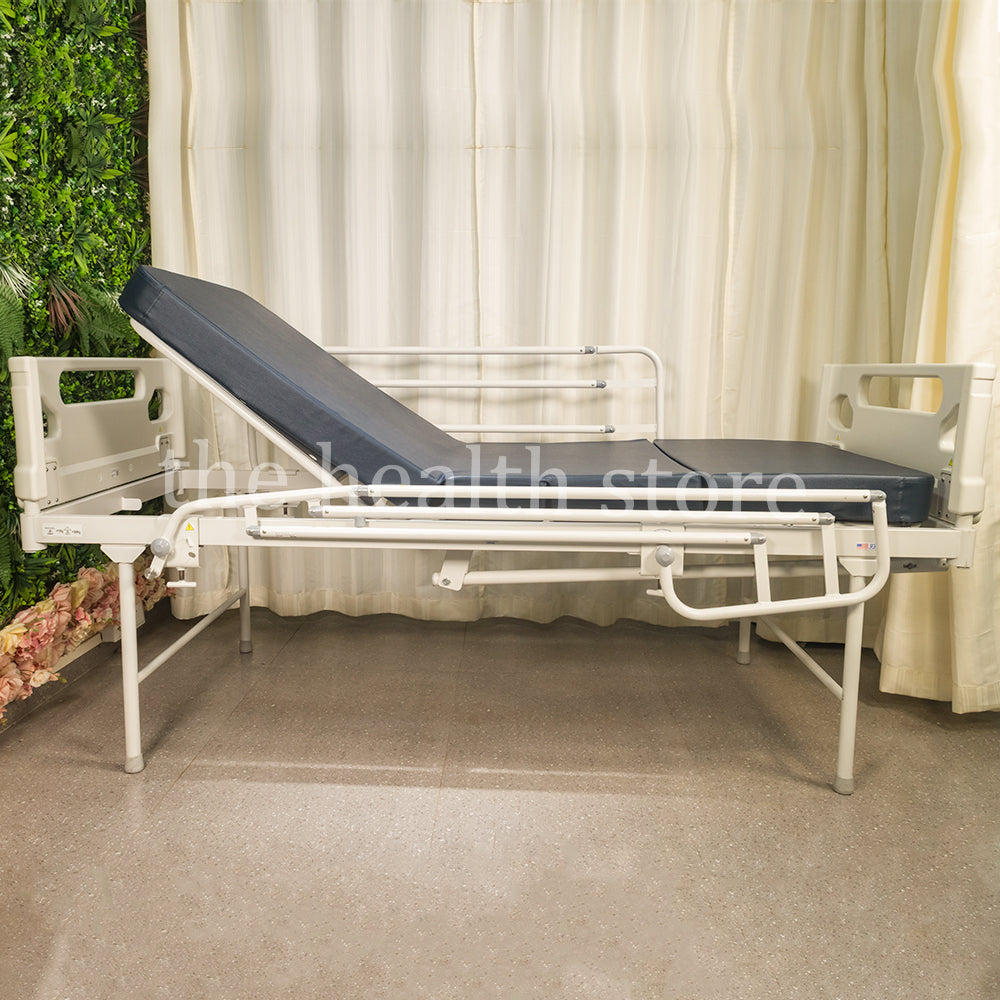

The BX4000 Fowler Bed has the facility to raise the Back & Leg sections which are operated by crank mechanism provided at the foot end of the bed. The raising section allows the nursing staff to change positions for various activities and clinical positions with relative ease.

Standard Features

• Raised backrest
• Raised Kneerest
• Two section metallic perforated top
• Pre-treated and epoxy powder coated MS parts
• Provision for IV pole
• Removable handle
• Easily removable head and foot boards
• Two section suitable mattress

Technical Specifications

Bed Frame Dimensions*                       79”x 36” (L x W)
Backrest Angle**                                   0˚- 70˚
Knee Rest Angle**                                 0˚- 50˚
Minimum Height (Without Mattress)   18"
Maximum Height (Without Mattress)   26"
Safe Working Load                                135 kgs
Patient Weight Bearing Capacityˆ         100 kgs
