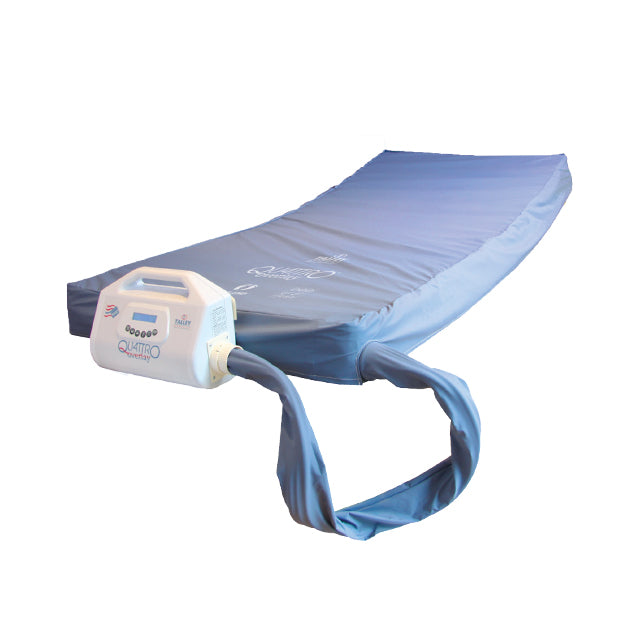

Talley Quattro Overlay Air Mattress On Rent

Suitable for the prevention and treatment of pressure ulcers within all care environments, the QUATTRO® OVERLAY is clinically proven to provide pressure relief, lower average interface pressures and enhanced comfort. The QUATTRO® OVERLAY mattress system features Active QUATTRO® THERAPY, and Continuous Low Pressure therapy modes with AUTOsupport TM fully automatic pressure adjustment.

QUATTRO® THERAPY - clinically proven pressure relief, lower interface pressures and enhanced comfort During the 1-in-4 Active cell cycle the patient is supported on at least 75% of the mattress surface at all times whilst the pressure on 25% of the body is relieved. This provides a higher level of comfort and lower average support pressures compared to 2 or 3 cell cycle systems, together with increased patient compliance.

ODSTM cell design for optimum patient support and security Air cells feature ortho differential support (ODSTM) which provides optimum internal cell pressures for varying body weights and shapes, automatically compensating for the patient’s BMI. Narrower in the centre than at the outer edge, air cells feature in-built support pressure differential, supporting the smaller, lighter patient on the softer central area of the cell, and the larger,
heavier patient on the firmer outer edges, as well as providing a feeling of security for the patient.

Continuous Low Pressure Therapy - optimum pressure distribution When in Continuous Low Pressure therapy mode pressure is equalised within the cells, allowing greater immersion into the mattress surface and optimum pressure distribution.

AUTOsupportTM - fully automatic pressure adjustment AUTO supportTM feature automatically adjusts pressure within each of the cells throughout the cycle so that support, posture and therapy are constantly maintained at optimum levels, in response to patient weight, movement and position. Equalisation of cell pressure automatically takes place at each stage of the cycle, again to ensure precise pressure and therapy is applied.

‘Low Air Loss’ Feature Air is released and circulated beneath the cover to reduce humidity and help manage the patient’s microclimate.

Double Bed Version Therapy cells to one side provide pressure care for the patient, with a supportive foam surface to the other side for the patient’s partner.

Comfort Control Allows the carer to adjust the comfort setting in either therapy mode to help patient compliance.

Easy to Operate Simple, concise operation buttons with autolock feature to prevent inadvertant button operation. Power unit features audio alerts together with LCD screen showing current operation status / fault conditions.

Fully Launderable The entire mattress can be thermally decontaminated to Department
of Health Circular HSG(95) 18 standards for effective infection control.

Max. Inflation Inflates the mattress to maximum static pressure for 15 minutes before returning to previous therapy mode, necessary for some nursing procedures when an active support surface is unsuitable.

PHASE FLOW™ pressure control pump operates on demand only, reducing power consumption, noise and extending service life.

Ergonomic Design Solutions The mattress features anti-kink umbilical, non-tear anchoring straps and cable management. The robust power unit features integrated carry handle and adjustable hanging brackets.

CPR Function Flush-fitting simple and effective rapid deflation valve removes air from
the mattress to enable CPR procedures.

Optional Cushion The B.A.S.E. Sequential 1-in-4 cushion can be connected directly to the mattress for effective and affordable 24 hour pressure care.

Transport Facility Allows unpowered support of the patient for up to 12 hours.

Modular Construction Simple to repair/ service on site.

Technical Data

Pump Width: 355 mm
Pump Height: 233 mm
Pump Depth: 165 mm
Pump Weight: 3.4 kg
Mode of Operation: Active 1-in-4 cell cycle
or Continuous Low Pressure
Alternating Cycle Time: 16 mins
Mattress Length * : 1930 mm
Mattress Width * : 850 mm
Mattress Depth * : 130 mm
Mattress Weight: 6.3 kg
Mattress Inner Construction Materials: PU air cells
Mattress Cover material: PU coated stretch nylon
Number of Cells: 17
Max. user weight guide: 160 kg / 25 stone
Min. user weight guide: None
